OpenShift 4.5 KNI Labs (Step-by-step)

KNI, Kubernetes Native Infrastructure is one of the method deploying OpenShift baremetal with IPI (Installer Provided Infrastructure), yes you read it right, a baremetal automated deployment leveraging ironic baremetal provisioner.

At the time this blog is written, KNI is still in development phase and not General Available (GA).

The way how the baremetal bootstrap works is a little bit different from other IPIs. Notable differences:

Provisioner node required to host bootstrap VM

We can use worker node that intended as worker node later for hosting temporarily provisioning node. Provisioning node required virtualization capabilities and same networking as other OCP nodes. Hence using this worker node is preferable since networking and requirement are exists without the need to setup another provisioner node.

Bootstrap node is now hosting more supporting containers like ironic components, mariadb, and dnsmasq.

In this entry, we are going to deploy OpenShift 4.5.13 using KNI on top of libvirt lab environment.

High Level Architecture

Lab Prerequisites

Create networking and VM as per below details. Do not power on those OCP VMs, installer will manage those nodes during bootstrapping.
Two networking on libvirt host as below.

 root  ~  virsh net-list | egrep 'prov|bare'
 baremetal-net      active   yes         yes
 provisioning-net   active   yes         yes

 root  ~  virsh net-dumpxml baremetal-net
<network connections='7'>
  <name>baremetal-net</name>
  <uuid>ffcfa3d5-4ce6-43ea-84d8-c03b5b10a103</uuid>
  <forward mode='nat'>
    <nat>
      <port start='1024' end='65535'/>
    </nat>
  </forward>
  <bridge name='virbr5' stp='on' delay='0'/>
  <mac address='52:54:00:19:8f:63'/>
  <domain name='baremetal-net'/>
  <ip address='192.168.102.1' netmask='255.255.255.0'>
  </ip>
</network>
 root  ~  virsh net-dumpxml provisioning-net
<network connections='6'>
  <name>provisioning-net</name>
  <uuid>8e8ed321-8f7b-4ba9-8bad-a5386d321bb4</uuid>
  <forward mode='nat'>
    <nat>
      <port start='1024' end='65535'/>
    </nat>
  </forward>
  <bridge name='virbr4' stp='on' delay='0'/>
  <mac address='52:54:00:36:8b:ac'/>
  <domain name='provisioning-net'/>
  <ip address='192.168.101.1' netmask='255.255.255.0'>
  </ip>
</network>
 root  ~

One Helper node that will attached to the baremetal network to provide below services:
- DNS and DHCP for baremetal network
- Host virtualBMC for IPMI control for all OCP node VM.
- 4vCPU/8GB RAM.
- RHEL 8.2
One provisioner node:
- RHCOS Image Cache Hosting
- First interface attached to provisioning network
- Second interface attached to baremetal network
- 8vCPU/12GB RAM
- Hosting baremetal VM (created by the installer later)
- RHEL 8.2
3 Master nodes VM and 2 worker nodes VM (lab usage resource only);
- First interface attached to provisioning network
- Second interface attached to baremetal network
- 8vCPU/16GB RAM.
- 50 GB Disk

Virtual Machine OS Configurations


Hostname(kni.bytewise.my)	vCPU	Memory	Disk	OS Version
openshift-master-0	8	16GB	50 GB	RHCOS 4.5
openshift-master-1	8	16GB	50 GB	RHCOS 4.5
openshift-master-2	8	16GB	50 GB	RHCOS 4.5
openshift-worker-0	8	16GB	50 GB	RHCOS 4.5
openshift-worker-1	8	16GB	50 GB	RHCOS 4.5
provisioner	8	12GB	50 GB	RHEL 8.2
kni-bastion (Helper)	4	8GB	20GB	RHEL 8.2

WARNING: We are running these VMs on the libvirt environment, provisioner node will be hosting a bootstrap VM, so it is CRITICAL for the provisioner VM to be able to do nested virtualization.
https://docs.fedoraproject.org/en-US/quick-docs/using-nested-virtualization-in-kvm/

Virtual Machine Network Configurations

Hostname(kni.bytewise.my)	IP Type	MAC Address	Network	IP Address
openshift-master-0	IPv4	NIC1 – 52:54:00:d4:d4:37 NIC2 – 52:54:00:58:ef:db	NIC1 – provisioning-net NIC2 – baremetal-net	NIC1- Provided by Bootstrap NIC2- 192.168.102.103
openshift-master-1	IPv4	NIC1 – 52:54:00:cb:88:27 NIC2 – 52:54:00:d8:3e:21	NIC1 – provisioning-net NIC2 – baremetal-net	NIC1- Provided by Bootstrap NIC2- 192.168.102.104
openshift-master-2	IPv4	NIC1 – 52:54:00:3f:fb:1c NIC2 – 52:54:00:9c:a2:25	NIC1 – provisioning-net NIC2 – baremetal-net	NIC1- Provided by Bootstrap NIC2- 192.168.102.105
openshift-worker-0	IPv4	NIC1 – 52:54:00:9a:45:68 NIC2 – 52:54:00:2a:08:51	NIC1 – provisioning-net NIC2 – baremetal-net	NIC1- Provided by Bootstrap NIC2- 192.168.102.106
openshift-worker-1	IPv4	NIC1 – 52:54:00:99:fc:52 NIC2 – 52:54:00:0c:57:1a	NIC1 – provisioning-net NIC2 – baremetal-net	NIC1- Provided by Bootstrap NIC2- 192.168.102.107
provisioner	IPv4	NIC1 – 52:54:00:3e:be:b6 NIC2 – 52:54:00:7c:b4:76	NIC1 – provisioning-net NIC2 – baremetal-net	NIC1- Provided by Bootstrap NIC2- 192.168.102.102
kni-bastion (Helper)	IPv4	NIC1 – 52:54:00:df:a1:14	NIC1 – baremetal-net	NIC1- 192.168.102.2

Helper Node Configurations

Ensure node is properly subscribed to the RHSM before proceeding to the next step.

Helper Node: DHCP

1. Install DHCP Server package:

[root@kni-bastion ~]# dnf install dhcp-server.x86_64 -y

2. Populate /etc/dhcp/dhcpd.conf:

[root@kni-bastion ~]# cat /etc/dhcp/dhcpd.conf
ddns-update-style interim;
ignore client-updates;
authoritative;
allow booting;
allow bootp;
allow unknown-clients;
default-lease-time -1;
max-lease-time -1;
subnet 192.168.102.0 netmask 255.255.255.0 {
         range 192.168.102.200 192.168.102.240;
         option routers 192.168.102.1;
         option domain-name-servers 192.168.102.2;
         option ntp-servers time.unisza.edu.my;
         option domain-search "kni.bytewise.my";
         host provisioner { hardware ethernet 52:54:00:7c:b4:76; fixed-address 192.168.102.102; }
         host openshift-master-0 { hardware ethernet 52:54:00:58:ef:db; fixed-address 192.168.102.103; }
         host openshift-master-1 { hardware ethernet 52:54:00:d8:3e:21; fixed-address 192.168.102.104; }
         host openshift-master-2 { hardware ethernet 52:54:00:9c:a2:25; fixed-address 192.168.102.105; }
         host openshift-worker-0 { hardware ethernet 52:54:00:2a:08:51; fixed-address 192.168.102.106; }
         host openshift-worker-1 { hardware ethernet 52:54:00:0c:57:1a; fixed-address 192.168.102.107; }
}

3. Start and enable dhcpd service:

[root@kni-bastion ~]# systemctl  enable dhcpd --now
Created symlink /etc/systemd/system/multi-user.target.wants/dhcpd.service → /usr/lib/systemd/system/dhcpd.service.
[root@kni-bastion ~]# systemctl  is-active dhcpd
active

Helper Node: DNS

1. Install Bind package:

[root@kni-bastion ~]# dnf install bind -y

2. Configure /etc/named.conf:

[root@kni-bastion named]# cat /etc/named.conf
//
// named.conf
//
// Provided by Red Hat bind package to configure the ISC BIND named(8) DNS
// server as a caching only nameserver (as a localhost DNS resolver only).
//
// See /usr/share/doc/bind*/sample/ for example named configuration files.
//
options {
	#listen-on port 53 { 127.0.0.1; };
	listen-on-v6 port 53 { ::1; };
	directory 	"/var/named";
	dump-file 	"/var/named/data/cache_dump.db";
	statistics-file "/var/named/data/named_stats.txt";
	memstatistics-file "/var/named/data/named_mem_stats.txt";
	secroots-file	"/var/named/data/named.secroots";
	recursing-file	"/var/named/data/named.recursing";
	allow-query     { any; };
	recursion yes;
	dnssec-enable yes;
	dnssec-validation yes;
	managed-keys-directory "/var/named/dynamic";
	pid-file "/run/named/named.pid";
	session-keyfile "/run/named/session.key";
	include "/etc/crypto-policies/back-ends/bind.config";
        forwarders {8.8.8.8;};
};
logging {
        channel default_debug {
                file "data/named.run";
                severity dynamic;
        };
};
zone "." IN {
	type hint;
	file "named.ca";
};
include "/etc/named.rfc1912.zones";
include "/etc/named.root.key";
zone "kni.bytewise.my" IN {
    type master;
    file "kni.bytewise.my.db";
    allow-update { none; };
};
zone "102.168.192.in-addr.arpa" IN {
    type master;
    file "102.168.192.in-addr.arpa";
};

3. Create and configure zone file “kni.bytewise.my”:

[root@kni-bastion named]# cat /var/named/kni.bytewise.my.db
$TTL     1D
@        IN  SOA dns.kni.bytewise.my. root.kni.bytewise.my. (
                       2019022400 ; serial
                       3h         ; refresh
                       15         ; retry
                       1w         ; expire
                       3h         ; minimum
)
                 		IN  NS  dns.kni.bytewise.my.
dns            			IN  A   192.168.102.2
provisioner           		IN  A   192.168.102.102
openshift-master-0           	IN  A   192.168.102.103
openshift-master-1          	IN  A   192.168.102.104
openshift-master-2           	IN  A   192.168.102.105
openshift-worker-0           	IN  A   192.168.102.106
openshift-worker-1           	IN  A   192.168.102.107
api				IN  A	192.168.102.108
*.apps				IN  A	192.168.102.109
cluster-ns			IN  A	192.168.102.110

4. Create and configure reverse zone record “102.168.192.in-addr.arpa”:

$TTL     1D
@        IN  SOA dns.kni.bytewise.my. root.kni.bytewise.my. (
                       2019022400 ; serial
                       3h         ; refresh
                       15         ; retry
                       1w         ; expire
                       3h         ; minimum
)
                IN  NS   dns.kni.bytewise.my.
102		IN PTR provisioner.kni.bytewise.my.
103		IN PTR openshift-master-0.kni.bytewise.my.
104		IN PTR openshift-master-1.kni.bytewise.my.
105		IN PTR openshift-master-2.kni.bytewise.my.
106		IN PTR openshift-worker-0.kni.bytewise.my.
107		IN PTR openshift-worker-1.kni.bytewise.my.
108		IN PTR api.kni.bytewise.my.
110		IN PTR cluster-ns.kni.bytewise.my.

5. Start and enable named service:

[root@kni-bastion ~]# systemctl enable named --now
Created symlink /etc/systemd/system/multi-user.target.wants/named.service → /usr/lib/systemd/system/named.service.
[root@kni-bastion named]# systemctl is-active named
active

6. Perform a quick DNS test:

[root@kni-bastion named]# nslookup
> server 192.168.102.2
Default server: 192.168.102.2
Address: 192.168.102.2#53
> api.kni.bytewise.my
Server:		192.168.102.2
Address:	192.168.102.2#53
Name:	api.kni.bytewise.my
Address: 192.168.102.108
> 192.168.102.108
108.102.168.192.in-addr.arpa	name = api.kni.bytewise.my.
> 192.168.102.103
103.102.168.192.in-addr.arpa	name = openshift-master-0.kni.bytewise.my.
>

Helper Node: virtualBMC

kni-bastion node needs to connect to the libvirt host to perform VM control task via hosted VBMC using qemu+ssh connection string.

Python virtualBMC –> Libvirt Host (via SSH) –> Managed VM

1. Generate ssh key pair, this public key will be use to allowed kni-bastion to access libvirt via SSH as root user.

[root@kni-bastion ~]# ssh-keygen -t rsa

2. Test root access to libvirt host using key-pair generated:

[root@kni-bastion ~]#  ssh root@192.168.254.100
Last login: Wed Oct 14 14:02:12 2020 from 192.168.102.2

3. Install dependencies for building VBMC using pip3 command:

[root@kni-bastion ~]# dnf install python3-pip.noarch libvirt-devel gcc python3-devel ipmitool -y

4. Install virtualBMC:

[root@kni-bastion ~]# pip3 install virtualbmc

You can use other pre-built VBMC RPM like the one available from OpenStack official repos.

5. Start the VBMC daemon and test the client command:

[root@kni-bastion ~]# vbmcd
[root@kni-bastion ~]# vbmc add openshift-master-0 --username admin --password password --port 6301 --address 192.168.102.2 --libvirt-uri qemu+ssh://192.168.254.100/system
[root@kni-bastion ~]# vbmc list
+--------------------+--------+---------------+------+
| Domain name        | Status | Address       | Port |
+--------------------+--------+---------------+------+
| openshift-master-0 | down   | 192.168.102.2 | 6301 |
+--------------------+--------+---------------+------+
[root@kni-bastion ~]# vbmc start openshift-master-0
[root@kni-bastion ~]# vbmc list
+--------------------+---------+---------------+------+
| Domain name        | Status  | Address       | Port |
+--------------------+---------+---------------+------+
| openshift-master-0 | running | 192.168.102.2 | 6301 |
+--------------------+---------+---------------+------+
[root@kni-bastion ~]# ipmitool -I lanplus -U admin -P password -H 192.168.102.2 -p 6301 power status
Chassis Power is off

6. Add the rest of the VMs:

[root@kni-bastion ~]# vbmc add openshift-master-1 --username admin --password password --port 6302 --address 192.168.102.2 --libvirt-uri qemu+ssh://192.168.254.100/system
[root@kni-bastion ~]# vbmc add openshift-master-2 --username admin --password password --port 6303 --address 192.168.102.2 --libvirt-uri qemu+ssh://192.168.254.100/system
[root@kni-bastion ~]# vbmc add openshift-worker-0 --username admin --password password --port 6304 --address 192.168.102.2 --libvirt-uri qemu+ssh://192.168.254.100/system
[root@kni-bastion ~]# vbmc add openshift-worker-1 --username admin --password password --port 6305 --address 192.168.102.2 --libvirt-uri qemu+ssh://192.168.254.100/system
[root@kni-bastion ~]# vbmc list
+--------------------+---------+---------------+------+
| Domain name        | Status  | Address       | Port |
+--------------------+---------+---------------+------+
| openshift-master-0 | running | 192.168.102.2 | 6301 |
| openshift-master-1 | down    | 192.168.102.2 | 6302 |
| openshift-master-2 | down    | 192.168.102.2 | 6303 |
| openshift-worker-0 | down    | 192.168.102.2 | 6304 |
| openshift-worker-1 | down    | 192.168.102.2 | 6305 |
+--------------------+---------+---------------+------+
[root@kni-bastion ~]# vbmc start openshift-master-1  openshift-master-2 openshift-worker-0 openshift-worker-1
[root@kni-bastion ~]# vbmc list
+--------------------+---------+---------------+------+
| Domain name        | Status  | Address       | Port |
+--------------------+---------+---------------+------+
| openshift-master-0 | running | 192.168.102.2 | 6301 |
| openshift-master-1 | running | 192.168.102.2 | 6302 |
| openshift-master-2 | running | 192.168.102.2 | 6303 |
| openshift-worker-0 | running | 192.168.102.2 | 6304 |
| openshift-worker-1 | running | 192.168.102.2 | 6305 |
+--------------------+---------+---------------+------+

7. Allow firewall rules for VMBC UDP ports:

[root@kni-bastion ~]# firewall-cmd --add-port=6301-6305/udp --permanent
[root@kni-bastion ~]# firewall-cmd --reload

Provisioning Node Configuration

Ensure this Provisioner node has been registered to the RHSM and properly subscribed.

Provisioner Node: Environment Setup

1. Create user ‘kni’ and configure it as passwordless sudoers.

[root@provisioner ~]# useradd kni
[root@provisioner ~]# passwd kni
Changing password for user kni.
New password:
BAD PASSWORD: The password fails the dictionary check - it is based on a dictionary word
Retype new password:
passwd: all authentication tokens updated successfully.
[root@provisioner ~]# echo "kni ALL=(root) NOPASSWD:ALL" | tee -a /etc/sudoers.d/kni
kni ALL=(root) NOPASSWD:ALL
[root@provisioner ~]# chmod 0440 /etc/sudoers.d/kni
[root@provisioner ~]# su - kni -c "ssh-keygen -t rsa -f /home/kni/.ssh/id_rsa -N ''"

2. Install necessary packages:

[root@provisioner ~]# su - kni
[kni@provisioner ~]$  sudo dnf install -y libvirt qemu-kvm mkisofs python3-devel jq ipmitool tar

3. Add kni user into libvirt group.

[kni@provisioner ~]$ sudo usermod --append --groups libvirt kni

4. Allow firewalld rule for HTTP port for RHCOS Image cache server:

[kni@provisioner ~]$ sudo firewall-cmd --zone=public --add-service=http --permanent
success
[kni@provisioner ~]$ sudo firewall-cmd --reload
success

5. Start and enable nested libvirtd on provisioner node:

[kni@provisioner ~]$ sudo systemctl enable libvirtd --now
[kni@provisioner ~]$ sudo systemctl is-active libvirtd
active

6. Configure libvirt storage pool for bootstrap VM:

[kni@provisioner ~]$ sudo virsh pool-define-as --name default --type dir --target /var/lib/libvirt/images
Pool default defined
[kni@provisioner ~]$ sudo virsh pool-start default
Pool default started
[kni@provisioner ~]$ sudo virsh pool-autostart default
Pool default marked as autostarted

Provisioner Node: Networking Setup

NOTE: Run this command from graphic or serial console. They will be some network interruption during configuration. You may used 3rd interface apart from this “baremetal” and “provisioning” bridge interface to avoid interruption using SSH terminal.

1. Configure “baremetal” networking bridge:

[kni@provisioner ~]$ nmcli con down enp2s0
[kni@provisioner ~]$ nmcli con delete enp2s0
[kni@provisioner ~]$ nmcli con add ifname baremetal type bridge con-name baremetal autoconnect yes ipv4.method auto
[kni@provisioner ~]$ nmcli con add type bridge-slave ifname enp2s0 master baremetal
[kni@provisioner ~]$ nmcli con reload
[kni@provisioner ~]$ nmcli con down baremetal
[kni@provisioner ~]$ nmcli con up baremetal

2. We can continue to use SSH connection if baremetal interface already up from this point.

[root@provisioner ~]# nmcli con delete enp1s0
[root@provisioner ~]# nmcli con add ifname provisioning type  bridge con-name provisioning
[root@provisioner ~]# nmcli con add type bridge-slave  ifname enp1s0 master provisioning
[root@provisioner ~]# nmcli con modify provisioning ipv4.addresses 172.22.0.1/24 ipv4.method manual
[root@provisioner ~]# nmcli con down provisioning
[root@provisioner ~]# nmcli con up provisioning

Provisoner Node: Prepare RHOCP binaries

1. Ensure the pull-secret.txt available on the provisioner node. Get this from https://cloud.redhat.com.

[kni@provisioner ~]$ cat pull-secret.txt

2. We are going to use version 4.5.13. Other release can be found at https://openshift-release.apps.ci.l2s4.p1.openshiftapps.com/. Now lets get the RELEASE_IMAGE URL.

[kni@provisioner ~]$ export VERSION="4.5.13"
[kni@provisioner ~]$ export RELEASE_IMAGE=$(curl -s https://mirror.openshift.com/pub/openshift-v4/clients/ocp/$VERSION/release.txt | grep 'Pull From: quay.io' | awk -F ' ' '{print$3}' )
[kni@provisioner ~]$ echo $RELEASE_IMAGE
quay.io/openshift-release-dev/ocp-release@sha256:8d104847fc2371a983f7cb01c7c0a3ab35b7381d6bf7ce355d9b32a08c0031f0
[kni@provisioner ~]$

3. Extract the baremetal installer:

[kni@provisioner ~]$ export cmd=openshift-baremetal-install
[kni@provisioner ~]$ export pullsecret_file=~/pull-secret.txt
[kni@provisioner ~]$ export extract_dir=$(pwd)
[kni@provisioner ~]$ curl -s https://mirror.openshift.com/pub/openshift-v4/clients/ocp/$VERSION/openshift-client-linux-$VERSION.tar.gz | tar zxvf - oc
[kni@provisioner ~]$  sudo cp oc /usr/local/bin
[kni@provisioner ~]$ oc adm release extract --registry-config "${pullsecret_file}" --command=$cmd --to "${extract_dir}" ${RELEASE_IMAGE}
[kni@provisioner ~]$ ls -rlt
total 439588
-rwxr-xr-x. 1 kni kni  78599240 Sep 16 23:27 oc
-rwxr-xr-x. 1 kni kni 371528960 Sep 18 16:59 openshift-baremetal-install
-rw-rw-r--. 1 kni kni      2739 Oct 14 17:01 pull-secret.txt
[kni@provisioner ~]$
[kni@provisioner ~] sudo cp openshift-baremetal-install /usr/local/bin/

Provisoner Node: RHCOS Image Cache

1. This is optional step, we want to make local cache for RHCOS images to save downloading time.

2. Install necessary packages:

[kni@provisioner ~]$ sudo dnf install -y podman policycoreutils-python-utils

3. Allow firewall port 8080, we are going to host it on port 8080:

[kni@provisioner ~]$ sudo firewall-cmd --add-port=8080/tcp --zone=public --permanent
success
[kni@provisioner ~]$ sudo firewall-cmd --reload
success

4. Configure the web content directory:

[kni@provisioner ~]$ mkdir /home/kni/rhcos_image_cache
[kni@provisioner ~]$ sudo semanage fcontext -a -t httpd_sys_content_t "/home/kni/rhcos_image_cache(/.*)?"
[kni@provisioner ~]$ sudo restorecon -Rv rhcos_image_cache/
Relabeled /home/kni/rhcos_image_cache from unconfined_u:object_r:user_home_t:s0 to unconfined_u:object_r:httpd_sys_content_t:s0
[kni@provisioner ~]$

5. Get the RHCOS images details:

[kni@provisioner ~]$ export COMMIT_ID=$(/usr/local/bin/openshift-baremetal-install version | grep '^built from commit' | awk '{print $4}')
[kni@provisioner ~]$ echo $COMMIT_ID
9893a482f310ee72089872f1a4caea3dbec34f28
[kni@provisioner ~]$
[kni@provisioner ~]$ export RHCOS_OPENSTACK_URI=$(curl -s -S https://raw.githubusercontent.com/openshift/installer/$COMMIT_ID/data/data/rhcos.json  | jq .images.openstack.path | sed 's/"//g')
[kni@provisioner ~]$ echo $RHCOS_OPENSTACK_URI
rhcos-45.82.202008010929-0-openstack.x86_64.qcow2.gz
[kni@provisioner ~]$
[kni@provisioner ~]$ export RHCOS_QEMU_URI=$(curl -s -S https://raw.githubusercontent.com/openshift/installer/$COMMIT_ID/data/data/rhcos.json  | jq .images.qemu.path | sed 's/"//g')
[kni@provisioner ~]$ echo $RHCOS_QEMU_URI
rhcos-45.82.202008010929-0-qemu.x86_64.qcow2.gz
[kni@provisioner ~]$ export RHCOS_PATH=$(curl -s -S https://raw.githubusercontent.com/openshift/installer/$COMMIT_ID/data/data/rhcos.json | jq .baseURI | sed 's/"//g')
[kni@provisioner ~]$ echo $RHCOS_PATH
https://releases-art-rhcos.svc.ci.openshift.org/art/storage/releases/rhcos-4.5/45.82.202008010929-0/x86_64/
[kni@provisioner ~]$ export RHCOS_QEMU_SHA_UNCOMPRESSED=$(curl -s -S https://raw.githubusercontent.com/openshift/installer/$COMMIT_ID/data/data/rhcos.json  | jq -r '.images.qemu["uncompressed-sha256"]')
[kni@provisioner ~]$ echo $RHCOS_QEMU_SHA_UNCOMPRESSED
c9e2698d0f3bcc48b7c66d7db901266abf27ebd7474b6719992de2d8db96995a
[kni@provisioner ~]$ export RHCOS_OPENSTACK_SHA_COMPRESSED=$(curl -s -S https://raw.githubusercontent.com/openshift/installer/$COMMIT_ID/data/data/rhcos.json  | jq -r '.images.openstack.sha256')
[kni@provisioner ~]$ echo $RHCOS_OPENSTACK_SHA_COMPRESSED
359e7c3560fdd91e64cd0d8df6a172722b10e777aef38673af6246f14838ab1a

5. Now download those images:

[kni@provisioner ~]$ curl -L ${RHCOS_PATH}${RHCOS_QEMU_URI} -o /home/kni/rhcos_image_cache/${RHCOS_QEMU_URI}
[kni@provisioner ~]$ curl -L ${RHCOS_PATH}${RHCOS_OPENSTACK_URI} -o /home/kni/rhcos_image_cache/${RHCOS_OPENSTACK_URI}

6. Run httpd container hosting the content directory using podman:

[kni@provisioner ~]$ podman run -d --name rhcos_image_cache \
-v /home/kni/rhcos_image_cache:/var/www/html \
-p 8080:8080/tcp \
registry.centos.org/centos/httpd-24-centos7:latest
[kni@provisioner rhcos_image_cache]$ curl -I http://192.168.102.102:8080/rhcos-45.82.202008010929-0-openstack.x86_64.qcow2.gz
HTTP/1.1 200 OK
Date: Wed, 14 Oct 2020 09:43:03 GMT
Server: Apache/2.4.34 (Red Hat) OpenSSL/1.0.2k-fips
Last-Modified: Wed, 14 Oct 2020 09:28:16 GMT
ETag: "357388a6-5b19e26c1c700"
Accept-Ranges: bytes
Content-Length: 896764070
Content-Type: application/x-gzip

Provisioner Node: RHOCP Baremetal IPI Installation

1. Prepare install-config.yaml:

NOTE: Details on the parameters can be found at https://openshift-kni.github.io/baremetal-deploy/4.5/Deployment.html#additional-install-config-parameters_ipi-install-prerequisites.

[kni@provisioner ~]$ cat install-config.yaml
apiVersion: v1
baseDomain: bytewise.my
metadata:
  name: kni
networking:
  machineCIDR: 192.168.102.0/24
compute:
- name: worker
  replicas: 2
controlPlane:
  name: master
  replicas: 3
  platform:
    baremetal: {}
platform:
  baremetal:
    provisioningNetworkInterface: enp1s0
    provisioningDHCPRange: 172.22.0.20,172.22.0.80
    provisioningNetworkCIDR: 172.22.0.0/24
    bootstrapOSImage: http://192.168.102.102:8080/rhcos-45.82.202008010929-0-qemu.x86_64.qcow2.gz?sha256=c9e2698d0f3bcc48b7c66d7db901266abf27ebd7474b6719992de2d8db96995a
    clusterOSImage: http://192.168.102.102:8080/rhcos-45.82.202008010929-0-openstack.x86_64.qcow2.gz?sha256=359e7c3560fdd91e64cd0d8df6a172722b10e777aef38673af6246f14838ab1a
    apiVIP: 192.168.102.108
    ingressVIP: 192.168.102.109
    dnsVIP: 192.168.102.110
    hosts:
      - name: openshift-master-0
        role: master
        bmc:
          address: ipmi://192.168.102.2:6301
          username: admin
          password: password
        bootMACAddress: 52:54:00:d4:d4:37
        hardwareProfile: libvirt
      - name: openshift-master-1
        role: master
        bmc:
          address: ipmi://192.168.102.2:6302
          username: admin
          password: password
        bootMACAddress: 52:54:00:cb:88:27
        hardwareProfile: libvirt
      - name: openshift-master-2
        role: master
        bmc:
          address: ipmi://192.168.102.2:6303
          username: admin
          password: password
        bootMACAddress: 52:54:00:3f:fb:1c
        hardwareProfile: libvirt
      - name: openshift-worker-0
        role: worker
        bmc:
          address: ipmi://192.168.102.2:6304
          username: admin
          password: password
        bootMACAddress: 52:54:00:9a:45:68
        hardwareProfile: libvirt
      - name: openshift-worker-1
        role: worker
        bmc:
          address: ipmi://192.168.102.2:6305
          username: admin
          password: password
        bootMACAddress: 52:54:00:99:fc:52
        hardwareProfile: libvirt
pullSecret: '{...}'
sshKey: '...'

2. Create installation directory and copy install-config.yaml into it:

[kni@provisioner ~]$  mkdir clusterconfigs
[kni@provisioner ~]$ cp install-config.yaml clusterconfigs/

3. Execute the installer to create the cluster:

[kni@provisioner ~]$ export TF_LOG=TRACE
[kni@provisioner ~]$ openshift-baremetal-install --dir ~/clusterconfigs --log-level debug create cluster

High Level Bootstrapping Process

Created a bootstrap VM on provisioner node. (It will take sometime for this VM to boot)

Bootstrap VM will starts below containers to help with the bootstrapping:
- initial etcd
- dnsmasq
- ironic-api
- ironic-inspector
- ironic-conductor
- httpd
- mariadb

3. At the same time, the installer keep connecting to the bootstrap ironic API endpoint, and it will succeed once ironic API is ready and RHOCP node will be powered on and continue the kickstart process.

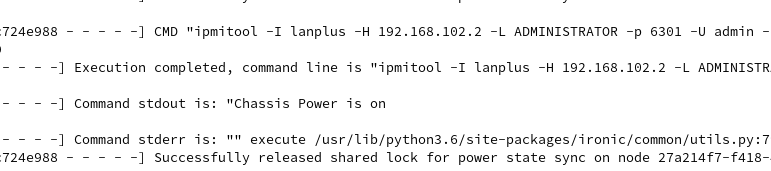

Bootstrap ironic-conductor container logs snippets.

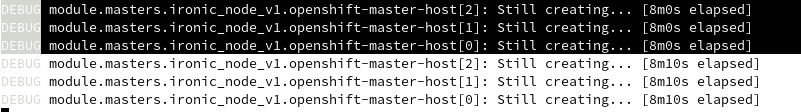

Terraform TRACE log level showing ironic API endpoints.

4. Next, installer will continue to provision the cluster similar to other IPI methodology.

5. Now on the provisioner node, we can use ‘oc’ client to see the cluster installation progress:

[kni@provisioner clusterconfigs]$ export KUBECONFIG=/home/kni/clusterconfigs/auth/kubeconfig
[kni@provisioner clusterconfigs]$ oc get co
NAME                                       VERSION   AVAILABLE   PROGRESSING   DEGRADED   SINCE
authentication                                       Unknown     Unknown       False      36s
cloud-credential                                     True        False         False      15m
cluster-autoscaler
config-operator
console
csi-snapshot-controller
dns
etcd                                       4.5.13    False       True          False      29s
image-registry
ingress
insights
kube-apiserver                                       False       False         False      34s
kube-controller-manager                              False       True          False      36s
kube-scheduler                                       False       True          False      36s
kube-storage-version-migrator              4.5.13    False       False         False      37s
machine-api
machine-approver
machine-config                                                   True
marketplace
monitoring
network                                    4.5.13    True        True          False      36s
node-tuning                                4.5.13    True        False         False      32s
openshift-apiserver                        4.5.13    False       False         False      34s
openshift-controller-manager                         False       True          False      31s
openshift-samples
operator-lifecycle-manager
operator-lifecycle-manager-catalog
operator-lifecycle-manager-packageserver
service-ca                                 4.5.13    True        False         False      30s
storage
[kni@provisioner clusterconfigs]$ oc get nodes
NAME                                 STATUS     ROLES    AGE   VERSION
openshift-master-0.kni.bytewise.my   NotReady   master   46s   v1.18.3+47c0e71
openshift-master-1.kni.bytewise.my   NotReady   master   51s   v1.18.3+47c0e71
openshift-master-2.kni.bytewise.my   NotReady   master   76s   v1.18.3+47c0e71
[kni@provisioner clusterconfigs]$

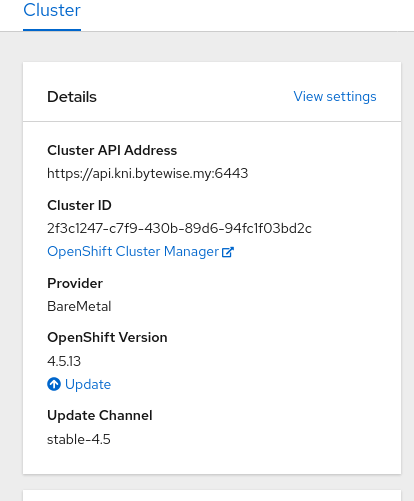

6. Finally verify the cluster is properly bootstrapped, bootstrap VM will be deleted from the provisioner node:

[kni@provisioner ~]$ oc get co
NAME                                       VERSION   AVAILABLE   PROGRESSING   DEGRADED   SINCE
authentication                             4.5.13    True        False         False      17m
cloud-credential                           4.5.13    True        False         False      3h1m
cluster-autoscaler                         4.5.13    True        False         False      145m
config-operator                            4.5.13    True        False         False      146m
console                                    4.5.13    True        False         False      135m
csi-snapshot-controller                    4.5.13    True        False         False      9m48s
dns                                        4.5.13    True        False         False      165m
etcd                                       4.5.13    True        False         False      165m
image-registry                             4.5.13    True        False         False      146m
ingress                                    4.5.13    True        False         False      17m
insights                                   4.5.13    True        False         False      161m
kube-apiserver                             4.5.13    True        False         False      164m
kube-controller-manager                    4.5.13    True        False         False      164m
kube-scheduler                             4.5.13    True        False         False      164m
kube-storage-version-migrator              4.5.13    True        False         False      14m
machine-api                                4.5.13    True        False         False      152m
machine-approver                           4.5.13    True        False         False      163m
machine-config                             4.5.13    True        False         False      13m
marketplace                                4.5.13    True        False         False      8m15s
monitoring                                 4.5.13    True        False         False      8m15s
network                                    4.5.13    True        False         False      166m
node-tuning                                4.5.13    True        False         False      166m
openshift-apiserver                        4.5.13    True        False         False      10m
openshift-controller-manager               4.5.13    True        False         False      160m
openshift-samples                          4.5.13    True        False         False      145m
operator-lifecycle-manager                 4.5.13    True        False         False      165m
operator-lifecycle-manager-catalog         4.5.13    True        False         False      165m
operator-lifecycle-manager-packageserver   4.5.13    True        False         False      161m
service-ca                                 4.5.13    True        False         False      166m
storage                                    4.5.13    True        False         False      159m
[kni@provisioner ~]$ oc get nodes
NAME                                 STATUS   ROLES    AGE    VERSION
openshift-master-0.kni.bytewise.my   Ready    master   168m   v1.18.3+47c0e71
openshift-master-1.kni.bytewise.my   Ready    master   168m   v1.18.3+47c0e71
openshift-master-2.kni.bytewise.my   Ready    master   168m   v1.18.3+47c0e71
openshift-worker-0.kni.bytewise.my   Ready    worker   19m    v1.18.3+47c0e71
openshift-worker-1.kni.bytewise.my   Ready    worker   19m    v1.18.3+47c0e71
[kni@provisioner ~]$
[kni@provisioner ~]$ oc get baremetalhosts.metal3.io  -n openshift-machine-api
NAME                 STATUS   PROVISIONING STATUS      CONSUMER             BMC                         HARDWARE PROFILE   ONLINE   ERROR
openshift-master-0   OK       externally provisioned   kni-master-0         ipmi://192.168.102.2:6301                      true
openshift-master-1   OK       externally provisioned   kni-master-1         ipmi://192.168.102.2:6302                      true
openshift-master-2   OK       externally provisioned   kni-master-2         ipmi://192.168.102.2:6303                      true
openshift-worker-0   OK       provisioned              kni-worker-0-v8lfw   ipmi://192.168.102.2:6304   libvirt            true
openshift-worker-1   OK       provisioned              kni-worker-0-k6k2s   ipmi://192.168.102.2:6305   libvirt            true
[kni@provisioner ~]$

References

https://openshift-kni.github.io/baremetal-deploy/4.5/Deployment.html
https://github.com/williamcaban/ocp4-bm-ipi
