Introducing the Event-Driven Ansible & Demo

Jin Zhang
Event Driven Ansible

In AnsibleFest 2022, Red Hat announced an exciting new developer preview for Event-Driven Ansible. Event-Driven Ansible is a new way to enhance and expand automation. It improves IT speed and agility while enabling consistency and resilience.

When this event occurs, Event-Driven Ansible matches the rule to the “event” and automatically implements the documented changes or responses in the rulebook to handle the event.

There are three major building blocks in the Event-Driven Ansible model,  sources, rules, and actions that play key roles in completing the workflow described above:

Demo – Devent Driven Monitoring

This demo shows how to monitor the rpm package installation activities and prevent ‘illegal’ package installation.

Environment Setup

There are 2 major components:

APACHE KAFKA

Prepare one RHEL 8 server and set up a standard FQDN hostname ‘kafka.example.com’.

Install APACHE KAFKA

Reference https://kafka.apache.org/quickstart

Download Kafka from the below link:

https://www.apache.org/dyn/closer.cgi?path=/kafka/3.3.1/kafka_2.13-3.3.1.tgz

extract install tgz file

$ tar -xzf kafka_2.13-3.3.1.tgz
$ cd kafka_2.13-3.3.1

Start the ZooKeeper service

Run the following commands in order to start all services in the correct order:

$ bin/zookeeper-server-start.sh config/zookeeper.properties

Start the Kafka broker service

Open another terminal session and run:

$ bin/kafka-server-start.sh config/server.properties

Import data as a stream of events with Kafka Connect

First, make sure to add connect-file-3.3.1.jar to the plugin.path property in the Connect worker’s configuration.

Edit the config/connect-standalone.properties file, and add or change the plugin.path configuration property match the following, and save the file:

# grep -v "^#" config/connect-standalone.properties

bootstrap.servers=localhost:9092

key.converter=org.apache.kafka.connect.json.JsonConverter
value.converter=org.apache.kafka.connect.json.JsonConverter
key.converter.schemas.enable=true
value.converter.schemas.enable=true

offset.storage.file.filename=/tmp/connect.offsets
offset.flush.interval.ms=10000

plugin.path=libs/connect-file-3.3.1.jar

Configure the source file ‘/var/log/dnf.log’ as below:

# grep -v "^#" ./config/connect-file-source.properties

name=local-file-source
connector.class=FileStreamSource
tasks.max=1
file=/var/log/dnf.log
topic=connect-dnf

Configure the sink file as below:

# grep -v "^#" config/connect-file-sink.properties

name=local-file-sink
connector.class=FileStreamSink
tasks.max=1
file=dnf.sink.txt
topics=connect-dnf

Start two connector

Next, I will start two connectors running in standalone mode, which means they run in a single, local, dedicated process. We provide three configuration files as parameters. The first is always the configuration for the Kafka Connect process, containing common configurations such as the Kafka brokers to connect to and the serialization format for data. The remaining configuration files each specify a connector to create. These files include a unique connector name, the connector class to instantiate, and any other configuration required by the connector.

Open another terminal session and run:

$ bin/connect-standalone.sh config/connect-standalone.properties config/connect-file-source.properties config/connect-file-sink.properties

Events from the dnf log file

Note that the data is being stored in the Kafka topic connect-dnf, so we can also run a console consumer to see the data in the topic (or use custom consumer code to process it):

# bin/kafka-console-consumer.sh --bootstrap-server localhost:9092 --topic connect-dnf --from-beginning
{"schema":{"type":"string","optional":false},"payload":"2023-01-14T04:51:21-0500 INFO --- logging initialized ---"}
{"schema":{"type":"string","optional":false},"payload":"2023-01-14T04:51:21-0500 DDEBUG timer: config: 6 ms"}
{"schema":{"type":"string","optional":false},"payload":"2023-01-14T04:51:22-0500 DEBUG Loaded plugins: builddep, changelog, config-manager, copr, debug, debuginfo-install, download, generate_completion_cache, groups-manager, needs-restarting, playground, product-id, repoclosure, repodiff, repograph, repomanage, reposync, subscription-manager, uploadprofile"}
...
{"schema":{"type":"string","optional":false},"payload":"2023-01-14T18:21:37+0800 DEBUG Installed: checkpolicy-2.9-1.el8.x86_64"}
{"schema":{"type":"string","optional":false},"payload":"2023-01-14T18:21:37+0800 DEBUG Installed: grub2-tools-efi-1:2.02-142.el8_7.1.x86_64"}
{"schema":{"type":"string","optional":false},"payload":"2023-01-14T18:21:37+0800 DEBUG Installed: kernel-4.18.0-425.10.1.el8_7.x86_64"}
{"schema":{"type":"string","optional":false},"payload":"2023-01-14T18:21:37+0800 DEBUG Installed: kernel-core-4.18.0-425.10.1.el8_7.x86_64"}
{"schema":{"type":"string","optional":false},"payload":"2023-01-14T18:21:37+0800 DEBUG Installed: kernel-modules-4.18.0-425.10.1.el8_7.x86_64"}
{"schema":{"type":"string","optional":false},"payload":"2023-01-14T18:21:37+0800 DEBUG Installed: policycoreutils-python-utils-2.9-20.el8.noarch"}
{"schema":{"type":"string","optional":false},"payload":"2023-01-14T18:21:37+0800 DEBUG Installed: python3-audit-3.0.7-4.el8.x86_64"}
{"schema":{"type":"string","optional":false},"payload":"2023-01-14T18:21:37+0800 DEBUG Installed: python3-libsemanage-2.9-9.el8_6.x86_64"}
{"schema":{"type":"string","optional":false},"payload":"2023-01-14T18:21:37+0800 DEBUG Installed: python3-policycoreutils-2.9-20.el8.noarch"}
{"schema":{"type":"string","optional":false},"payload":"2023-01-14T18:21:37+0800 DEBUG Installed: python3-setools-4.3.0-3.el8.x86_64"}
...

The connectors continue to process data, so we can add data to the file and see it move through the pipeline:

$ echo Another line>> /var/log/dnf.log

You should see the line appear in the console consumer output.

Ansible-rulebook

Prepare one RHEL 9 server

Install ansible-rulebook

Reference: https://github.com/ansible/ansible-rulebook/blob/main/docs/installation.rst

dnf --assumeyes install gcc java-17-openjdk maven python3-devel python3-pip
export JDK_HOME=/usr/lib/jvm/java-17-openjdk
export JAVA_HOME=$JDK_HOME
pip3 install -U Jinja2
pip3 install ansible ansible-rulebook ansible-runner wheel
pip3  install aiokafka

Install collection ansible.eda

ansible-galaxy collection install community.general ansible.eda

Inventory

# cat inventory.yml
kafka.example.com  ansible_user=root

Rule-Book – ‘kafka-dnf.yml’

# cat kafka-dnf.yml
- name: Read messages from a kafka topic and act on them
  hosts: kafka.example.com
  ## Define our source for events
  sources:
    - ansible.eda.kafka:
        host: kafka.example.com
        port: 9092
        topic: connect-dnf
        group_id:

  rules:
    - name: receive event
      condition: event.schema.type == "string"
      ## Define the action we should take should the condition be met
      action:
        run_playbook:
          name: dnf-event.yaml
      delegate_to: localhost

It listens on the topic ‘connect-dnf’ from port 9092 on server ‘kafka.example.com’. The new line in the ‘dnf.log’ will trigger a new event. Ideally, I should use ‘condition:’ to detect the expected event and call the playbook. At this moment, the ‘condition:’ does not support complicated operations, like regex string match. I pass the entire event content to the playbook ‘dnf-event.yaml’ for condition filtering.

Playbook – ‘dnf-event.yaml’

# cat dnf-event.yaml
---
- name: Analyze the dnf event.payload
  hosts: kafka.example.com
  gather_facts: false
  vars:
    rpm_black_list:
      - telnet
      - traceroute

  tasks:
  - set_fact:
      event_content: "{{ event.payload.replace('\"', '') }}"

  - debug:
      msg: "{{ event_content }}"

  - name: check if rpm listed in blacklist
    command: /usr/bin/python3
    args:
      stdin: |
        import re
        in_blacklist = False
        search_pattern = "^\d{4}-\d{2}-\d{2}T\d{2}:\d{2}:\d{2}\+\d{4}\s+DEBUG\s+Installed:\s+(.+?)$"

        try:
          installed_rpm = re.search(search_pattern, "{{ event_content }}").group(1).strip()
        except:
          print('no package installed')
        else:
          for rpm in {{ rpm_black_list}}:
            if re.search(rpm, installed_rpm):
              in_blacklist = True
              print(installed_rpm)

        print(in_blacklist)
    register: results

  - name: Remove the RPM in blacklist
    ansible.builtin.yum:
      name: "{{ results.stdout_lines[0] }}"
      state: absent
    when:  results.stdout_lines[-1] | bool

The below variable includes the package name in the blacklist

  vars:
    rpm_black_list:
      - telnet
      - traceroute

The search pattern is used to detect package installation events:

search_pattern = "^\d{4}-\d{2}-\d{2}T\d{2}:\d{2}:\d{2}\+\d{4}\s+DEBUG\s+Installed:\s+(.+?)$"

Sample package installation events:

2023-01-17T21:11:19+0800 DEBUG Installed: telnet-1:0.17-76.el8.x86_64

The python code is to detect the package installation event and check if the installed package is on the blacklist:

try:
  installed_rpm = re.search(search_pattern, "{{ event_content }}").group(1).strip()
except:
  print('not package installed')
else:
  for rpm in {{ rpm_black_list}}:
    if re.search(rpm, installed_rpm):
      in_blacklist = True
      print(installed_rpm)

The playbook code to remove the illegal package:

- name: Remove the RPM in blacklist
  ansible.builtin.yum:
    name: "{{ results.stdout_lines[0] }}"
    state: absent
  when:  results.stdout_lines[-1] | bool

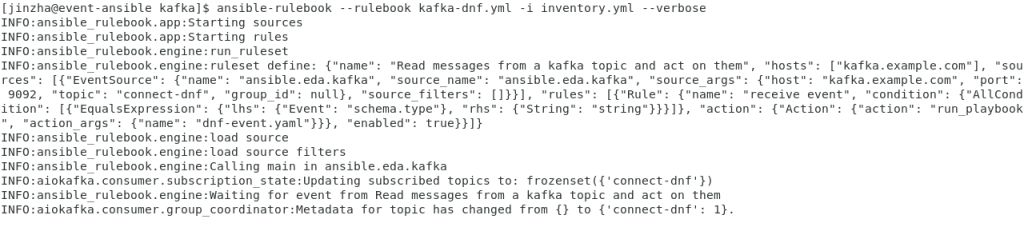

Start Ansible Rulebook

$ ansible-rulebook --rulebook kafka-dnf.yml -i inventory.yml --verbose

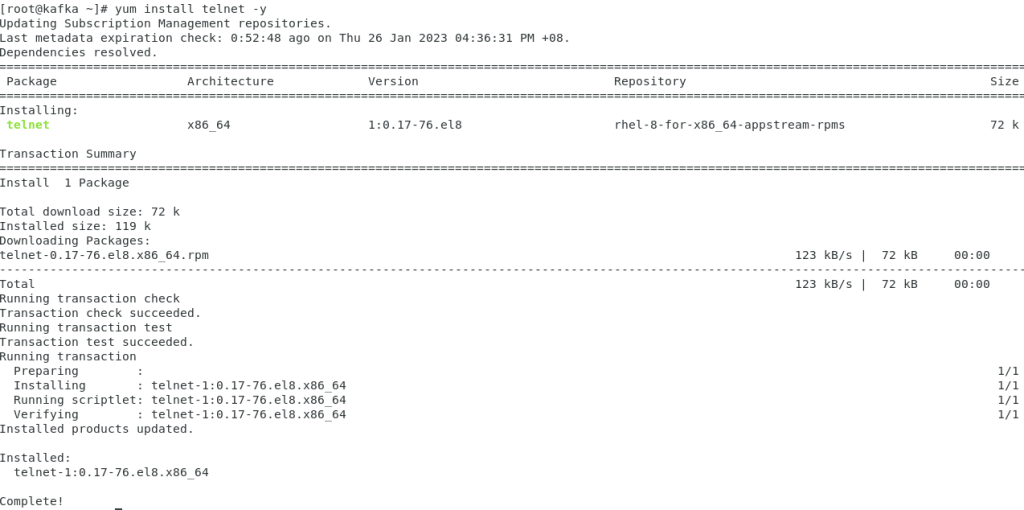

Installed ‘illegal’ package ‘telnet’

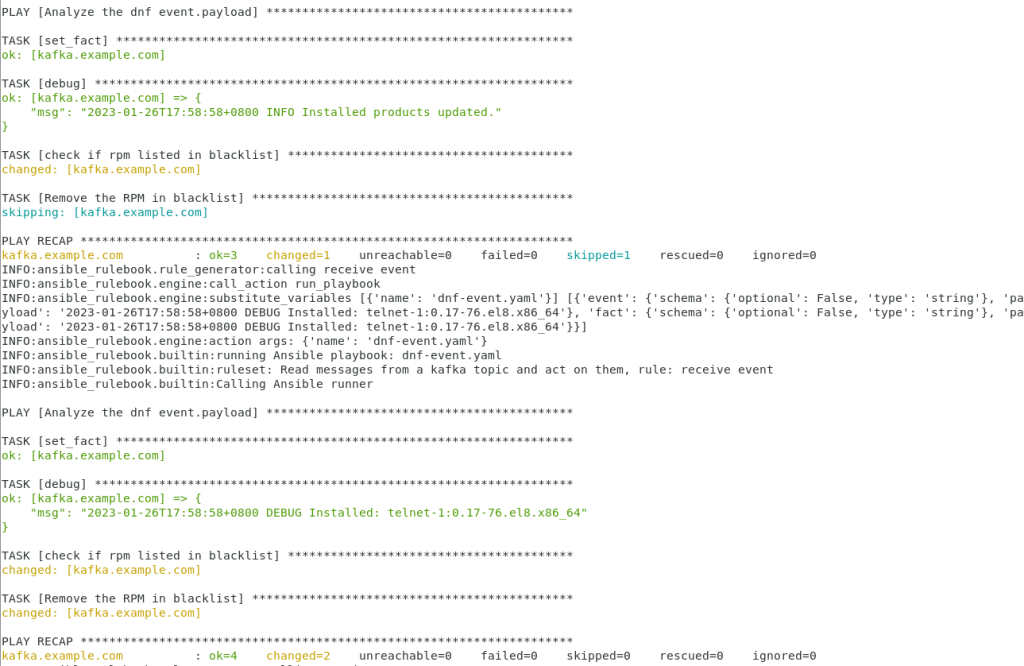

Detect the target event and trigger uninstall playbook

In the below screen capture

The event ‘2023-01-26T17:58:58+0800 INFO Installed products updated.’ is not what we look for. The task ‘Remove the RPM in blacklist’ is skipped.

The event ‘2023-01-26T17:58:58+0800 DEBUG Installed: telnet-1:0.17-76.el8.x86_64’ is what we look for. The task ‘Remove the RPM in blacklist’ is trigged.

Verify the package ‘telnet’ status

Summary

An event-driven structure is based on events, which signal to interested parties. Events are happening all the time across all industries.

In an event-driven structure, there are producers and consumers. Producers trigger events sent to interested consumers as messages through an event channel, where they are processed asynchronously. Producers and consumers don’t have to wait for each other to begin the next task, as producers are loosely coupled or completely decoupled from recipients.

Decoupling improves scalability, as it can separate communication and the logic between producers and consumers. The playbook developer on the consumer side does not need to have an inside view of producers, and vice-versa. A publisher can avoid bottlenecks and remain unaffected if its subscribers go offline or their consumption slows down.
